Your Professional Submersible Mixer Supplier
Our goal is to become your true partner in the field of submersible mixer in China. Henan Eco Environmental Protection Equipment Co., Ltd specializes in water and wastewater treatment devices and system, which integrates product development, sales, engineering supporting and technology consulting service. Team experience over 10 years in exporting wastewater treatment machines. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
-
![Submersible Manure Mixer For Livestock Wastewater Treatment – Stainless Steel, Efficient Mixing For Biogas Digesters & Manure Storage Tanks]()
Submersible Manure Mixer For Livestock Wastewater Treatme...This high-efficiency submersible manure mixer is designed for livestock wastewater treatment, aiming for uniform mixing, sedimentation prevention, and improved biogas digestion with...view more -
![Horizontal Submersible Mixer | Wastewater Mixing Equipment | VIVAMIX]()
Horizontal Submersible Mixer | Wastewater Mixing Equipmen...The VIVAMIX Horizontal Submersible Mixer provides efficient mixing for wastewater treatment, industrial, and agricultural applications. Compact, durable, and energy-saving design—contact us for...view more -
![Submersible Mixer For MBBR Tank]()
Submersible Mixer For MBBR TankThe Submersible Mixer for MBBR Tanks is designed to keep the bio-carrier media suspended, prevent sedimentation, and enhance contact with biofilm surfaces. Featuring a large-diameter, low-speed...view more -
![Industrial Submersible Mixers]()
Industrial Submersible MixersOur Industrial Submersible Mixers offer excellent mixing performance for liquids containing sediment, suspended solids, and floating debris, making them ideal for municipal and industrial...view more -
![Submersible Agitators]()
Submersible AgitatorsAdjustable speed energy-saving submersible agitators equipped with an intelligent control system, it can adjust the speed according to the actual requirements. By adjusting the mixing speed of the...view more -
![Submersible Mixer Pump]()
Submersible Mixer PumpSubmersible Mixer Pump are widely used in wastewater and sewage treatment systems, particularly for mixing liquids containing sediment, suspended solids, and floating debris. Their excellent...view more -
![Submersible Mixer Wastewater Treatment]()
Submersible Mixer Wastewater TreatmentLow-speed submersible mixer wastewater treatment is suitable for different pools and oxidation ditches, low-speed submersible mixer wastewater treatment has large diameter propellers, and mixing...view more -
![Submersible Tank Mixer]()
Submersible Tank MixerSubmersible tank mixer is a new type of submersible mixer, which saves more than 40% more energy than ordinary submersible mixers, has large transmission torque, is lifetime maintenance-free, long...view more -
![Submersible Mixers Wastewater]()
Submersible Mixers WastewaterVM series submersible mixers wastewater is a high-efficiency mixing equipment launched by our company, which is widely used in water quality improvement processes such as sewage treatment and...view more -
![Submersible Mixer Price]()
Submersible Mixer PriceSubmersible mixer price is an efficient and durable mixing equipment composed of submersible motor, installation system and impellers. It can achieve the homogenization and flow process...view more -
![Submersible Mixer for Anoxic Tank]()
Submersible Mixer for Anoxic TankSubmersible mixer for anoxic tank is widely used in the fields like sewage treatment, industrial wastewater treatment, aquaculture, etc. Strong agitation prevents sludge and suspended particles in...view more -
![Mixer Submersible]()
Mixer SubmersibleMixer submersible is made of high-quality stainless steel, with high strength, corrosion resistance and good performance. Suitable for mixing in biological treatment tanks, anaerobic tanks, and...view more
Why Choose Us
Product application: Our products include submersible mixers, vertical mixers, internal recirculation pumps, mechanical aerators, etc. These products are widely used in sewage treatment plants, pure water production and other industries.
Our certificates: Our company has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification.
Production market: Our products have been exported to many countries and regions and enjoy a good reputation among customers. Mainly exported to the United States, Russia, Brazil, Argentina, Colombia, the Philippines, Vietnam, Malaysia, Indonesia, Turkey, Tunisia, Iran and other countries.
Our services: In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.
Advantages of Submersible Mixer
Energy saving:
By reducing the motor output torque, using the high-efficiency permanent magnet motor drive, compared with common submersible agitators, the adjustable speed energy-saving submersible agitators achieves 40% energy-saving.
Reduced equipment damage:
The intelligent design can real-time monitoring all operating parameters. It provides timely alerts and shutdown protection in case of abnormal vibrations during the submersible mixing process.
High production efficiency:
Adjustable speed energy-saving submersible agitators can adjust the mixing speed flexibly, it improves the mixing effect significantly, enhancing overall production efficienc
Product Parameters of Submersible Mixer
|
GVM 320 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
320 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740 |
|
Drive Type |
Motor+Gearbox |
|
Motor Power, kW |
1.5/2.2/2.5/3/4 |
|
Efficiency,% |
88.1/89.7/90.1/90.3/91 |
|
Power Factor,P.F |
0.77/0.81/0.82/0.82/0.82 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
Types of Submersible Mixers
Axial mixers:
Axial submersible mixers have blades or impellers fixed to the motor shaft. They push the liquid in the axial direction or parallel to the shaft. These mixers have a simple design and work on low shear force. Therefore, they are ideal for mixing shallow depths of liquids with low viscosity.
Radial mixers:
Radial submersible mixers have impellers that push or pull liquid to the side in a perpendicular direction. They provide high mixing intensity at low speeds. The radial mixer is ideal for handling liquids with high volumes and depths. They are used in hydrodynamic processes like emulsification, dispersion, and polymerization.
Helical mixers:
The helical mixer has an impeller that mimics a screw thread. It provides axial and radial flow, giving customers better performance. These mixers are suitable for deep tanks with sediments at the bottom. They eliminate the sediments to ensure a uniform mixture of liquid.
Axial radial mixers:
This mixer combines the benefits of the axial and radial mixer. It has an axial flow pump with a radial impeller. The mixer reduces power consumption while improving flow and mixing. Also, it uses a small quantity of polymer to create a large bubble inside the tank to reduce the cost of chemical use.
Features of Submersible Mixer
Motor power: The motor power of a submersible mixer is usually expressed in kw. For large volume wastewater treatment plants, power greater than 4.0 kw is necessary. The greater the motor power, the more mixing capacity.
Speed: Submersible mixers usually operate at speeds of about 1,500 to 3,600 rpm. Higher speed provides better mixing efficiency and the ability to break up larger aggregations.
Blades: A submersible mixer can have single and multiple blades. The type and number of blades will affect the mixing range and homogeneous mixing effect. Blade diameter ranges from 200mm to 1200mm, and the larger the diameter, the more area covered.
Material: The body material of a submersible mixer is often stainless steel or carbon steel with a good anti-corrosion coating. This allows the mixer to work in different media for a long time without being corroded.
Depth rating: Submersible mixers are designed with different depth ratings. For example, an ip68 rating means the mixer can function at a depth of more than 5 meters.
Temperature range: The working temperature range of a submersible mixer is usually between -20°c and 60°c. This means the mixer can be used in high and low-temperature environments.

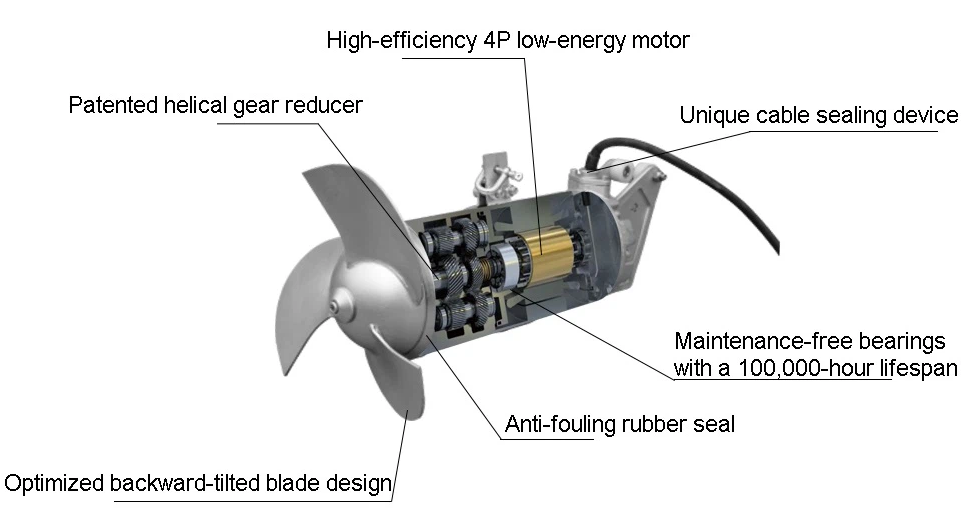

Core Technology of Submersible Mixer
Application of Submersible Mixer
Wastewater treatment facilities:
Submersible mixers are extensively used in wastewater treatment facilities. The main function of the mixer is to effectively mix and evenly distribute wastewater with additives like coagulants and flocculants before the treatment process occurs. By uniformly spreading these chemicals, submersible mixers assist in enhancing the quality of water and simplifying subsequent treatment stages.
Storage containers and ponds:
Submersible mixers play a vital role in homogenizing liquids stored in tanks, silos, or other types of containers. They ensure uniform mixing of materials, chemicals, or products throughout the entire storage facility.
Marine and environmental remediation:
Submersible mixers are useful in marine and environmental remediation applications. They can be employed in marine environments like oceans or lakes to facilitate the mixing of water or other substances.
Customization Process of Submersible Mixer
Requirements analysis:
The engineering team works with customers to understand application details such as fluid type, tank size, flow pattern, and special environmental or operating requirements.
01
Custom design:
Based on the information collected, the agitator design is developed, which May involve special impeller shapes, motor specifications, or corrosion-resistant materials.
02
Prototype development and testing:
Complex or novel designs require prototype development and performance testing.
03
Manufacturing:
Agitator components are produced to precise specifications using advanced facilities.
04
Quality assurance:
Agitators are rigorously tested and quality controlled to ensure that they meet high standards and customer requirements.
05
Packing and Shipping of Submersible Mixer
|
Packing |
Wooden box |
|
Shipping |
Shipped by road, sea, rail |
FAQ
As one of the leading submersible mixer manufacturers and suppliers in China, we warmly welcome you to buy high-grade submersible mixer from our factory. All customized products are with high quality and competitive price.
