Overview

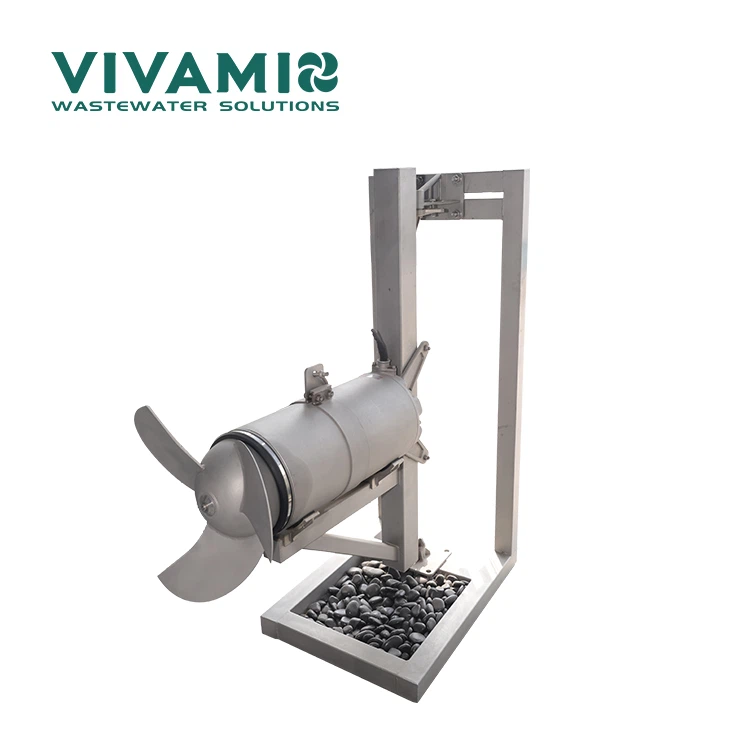

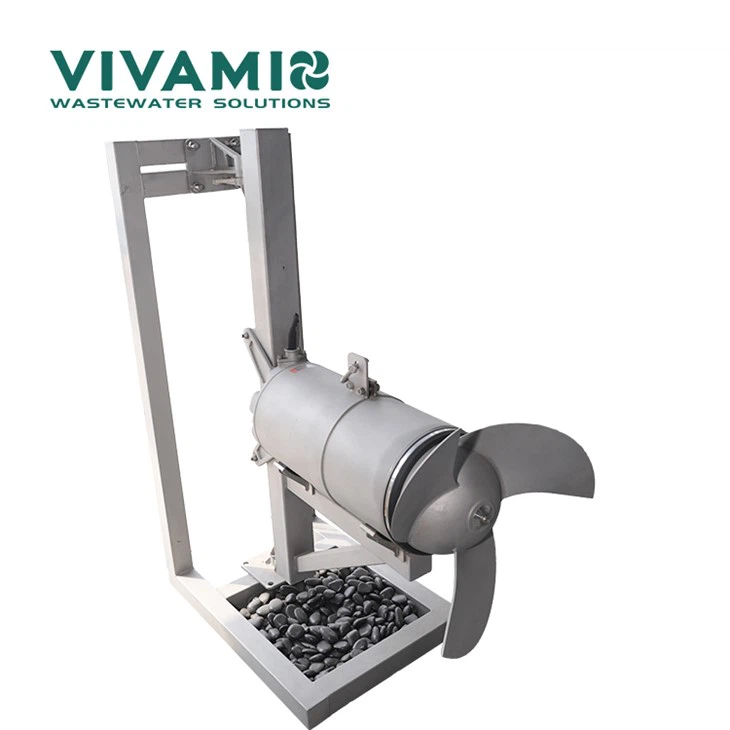

Submersible tank mixer is a new type of submersible mixer, which saves more than 40% more energy than ordinary submersible mixers, has large transmission torque, is lifetime maintenance-free, long service life, and an extra-long five-year warranty, and many other advantages. Submersible tank mixer is a revolutionary innovation in the water treatment process Submersible tank mixer is irreplaceable in municipal sewage, industrial sewage, wastewater treatment plants, and other industries.
Product Video
Features
1. Submersible tank mixer has compact structure, small size, lightweight, lifelong maintenance-free, simple installation, long service life; service life exceeds 100,000 hours
2. Unique impeller design, anti-winding, self-cleaning blades, high precision, large thrust, simple and beautiful
3. Ultra-low energy consumption, saving more than 40% of electricity compared to ordinary products, saving electricity and money
4. Submersible tank mixer with Ultra-long warranty, five-year warranty;
5. Motor winding F-class insulation, motor protection level IP68, imported permanent lubrication maintenance-free bearings, cavity leakage detection, motor winding overheating protection; use helical gear reducer, high efficiency, maintenance-free, ultra-long service life
Core Advantages Of Products
Material 304 Stainless Steel
Material: The main engine housing and impeller are made of stainless steel 304/316, which is durable and has a long service life.
Bearings
Imported large-size double-row angular contact ball bearings and deep groove ball bearings are maintenance-free and permanently self-lubricated, with a designed service life of more than 100,000 hours.
Helical Gear Reducer
The helical gear reducer has stable transmission, low noise, strong load-bearing capacity, high efficiency, long life and maintenance-free.
Motor 4p
Uses high-efficiency 4P low-energy consumption motor, stainless steel motor shaft, stable operation,Motor winding insulation class F, protection class: IP68

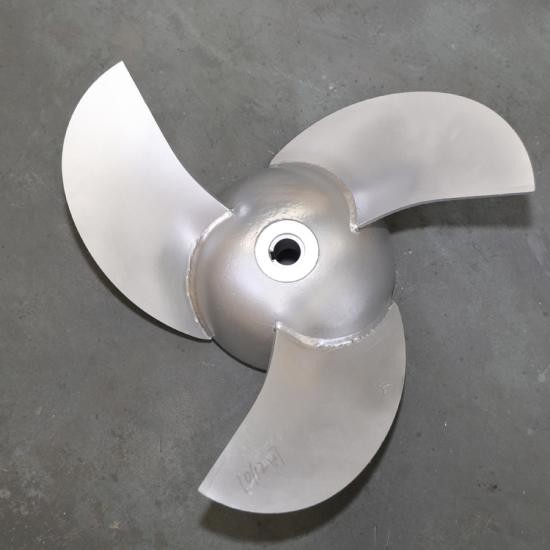

Impeller
The blades are swept back and the blade edges have a cutting edge, which is efficient and prevents entanglement.
Structure Drawing
Installation System
Company Profile
VIVA-MIX is a sub-brand of Henan ECO Environmental Equipment CO.,Ltd.
Our factory located in a famous historic city--- Nanjing, Jiangsu Province, specialize in manufacturing submersible mixers, vertical mixers and aeration mechanical & devices for wastewater treatment applications. Guided by our corporate philosophy of "Technology Leads, Quality Survival," we continually study and research cutting-edge technologies and innovative processes from top domestic and international products. By integrating these advancements with working site experiences, we have developed a unique series of products that stand out in the wastewater treatment field.
Our core product range includes energy-saving submersible mixers& recirculation pumps, standard submersible mixers & recirculation pumps , mixers designed specifically for MBBR fillers, hyperbolic mixer& other paddle type vertical mixers, submersible(jet) aerators and various membrane type air diffuser along with installation kits. All our products have been verified by authoritative national testing agencies. Over the past decade, our equipment has been widely deployed in municipal sewage treatment plants and industrial wastewater projects across various sectors, proving its durability and market reliability. We have exported our product to to over 100 countries and regions and enjoy a good reputation among our customers.
To date, our company has been awarded four invention patents and twenty-five utility model patents, with certifications of ISO quality management system, ISO environmental management system, ISO occupational health and safety management system.
Dedicated to continuous self-improvement and product optimization, We looking forward to walking the path of environmental protection with you!
Performance Parameters
|
GVM 320 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
320 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740 |
|
Drive Type |
Motor+Gearbox |
|
Motor Power, kW |
1.5/2.2/2.5/3/4 |
|
Efficiency,% |
88.1/89.7/90.1/90.3/91 |
|
Power Factor,P.F |
0.77/0.81/0.82/0.82/0.82 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
GVM 400 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
400 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740 |
|
Drive Type |
Motor+Gearbox |
|
Motor Power, kW |
1.5/2.2/2.5/3/4 |
|
Efficiency,% |
88.1/89.7/90.1/90.3/91 |
|
Power Factor,P.F |
0.77/0.81/0.82/0.82/0.82 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
GVM 620 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
620 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
480 |
|
Drive Type |
Motor+Gearbox |
|
Motor Power, kW |
4/5/7.5/10/15/18.5/22 |
|
Efficiency,% |
90.9/92.1/92.6/93.6/94.1/94.3/94.7 |
|
Power Factor,P.F |
0.82/0.83/0.84/0.85/0.86/0.86/0.86 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
