Hyperboloid Agitator

The VM-H hyperboloid agitator is a high-efficiency mixing device specifically designed for wastewater treatment applications, widely used in aeration tanks, oxidation ditches, sludge tanks, equalization tanks, and industrial wastewater treatment systems. Featuring a unique hyperboloid impeller design, it effectively eliminates mixing dead zones, ensures uniform mixing, prevents sedimentation, and enhances oxygen transfer efficiency.

Drive Motor： High-efficiency motor, stable performance, IP55 protection class, suitable for continuous operation.
Speed Reducer Helical gear reducer, compactstructure, low noise, hightorque output.
Mounting Base Strong and reliable base, connectsthe reducer to the supportingstructure.
Bearing Housing Heavy-duty bearing housing,provides stable support forthe main shaft.
Main Shaft Stainless steel shaft, highstrength, corrosion resistant,ensures smooth operation.

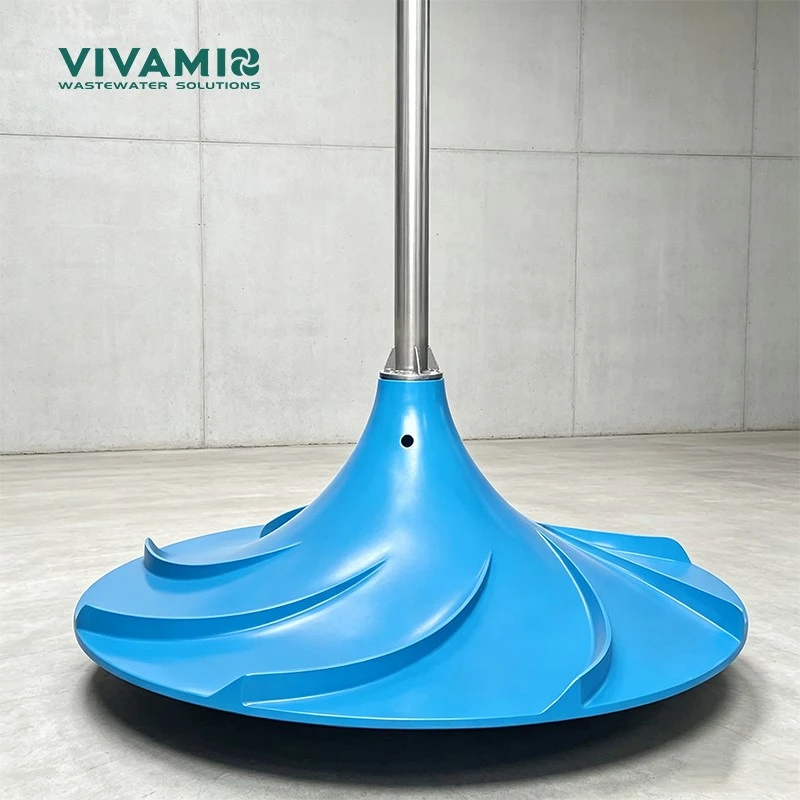

Impeller (Hyperboloid Blade) Hyperboloid design, efficientmixing, low energy consumption,self-cleaning, reduces deposition.

VM-H hyperboloid agitator generates a three-dimensional circulating water flow through the rotation of a special hyperboloid impeller, achieving cross-mixing in both axial and radial directions and thereby eliminating mixing dead zones.

• Hyperboloid impeller structure: The impeller surface is designed with a hyperbolic curve, optimizing fluid dynamics and mechanical performance for efficient mixing.

• Three-dimensional water flow: The rotating impeller creates axial and radial flow, forming a large-scale three-dimensional circulation throughout the tank.

• Uniform mixing with no dead zones: The unique design ensures continuous liquid movement, preventing sedimentation and eliminating dead zones.

Dead-Zone-Free Mixing

The three-dimensional spiral flow ensures uniform mixing throughout the tank, eliminating stagnant areas.

Energy-Efficient Operation

The large-area impeller delivers high mixing efficiency with low power consumption, requiring less than one-third of the energy compared with traditional impellers.

Gentle Mixing & Easy Maintenance

Provides gentle agitation without damaging sludge flocs. With a clog-free impeller and no easily worn underwater components, it ensures reliable operation and easy maintenance.

Long Service Life

Low-speed operation reduces wear, and corrosion-resistant materials provide long-term durability, ensuring a service life of more than 10 years.

Henan Eco Environmental Protection Equipment Co., Ltd.

Henan Eco Environmental Protection Equipment Co., Ltd. is a professional manufacturer specializing in wastewater treatment equipment.

With advanced production facilities, experienced engineers, and strict quality control, we provide reliable mixing and aeration solutions for global customers.

Our products are exported to Europe, Southeast Asia, Middle East, and other regions.



Q1: What is the application of hyperboloid agitator?

A: It is mainly used for wastewater mixing, sludge suspension, equalization tanks, and oxidation ditch applications.

Q2: How to select a suitable hyperboloid agitator?

A: The suitable mixer model depends on tank volume, liquid properties, mixing purpose, and installation conditions. If you are unsure about the selection, please contact Luna on WhatsApp: +86 135 2252 5054 for professional advice.

Q3: Can it be customized?

A: Yes. We can customize power, impeller diameter, installation method, and material according to project requirements.
