Overview
Wastewater mixer, also known as a submersible flow mixer or low-speed flow mixer, is sewage treatment equipment that has a low speed and a large impeller. It mainly comprises a motor, reducer, blades, and installation system. Wastewater mixer has low power, low speed, large impeller diameters, and wide service ranges. It can ensure a good friction effect with liquid under a low-speed motion state, to create better water flow. In addition to the function of stirring and mixing, a wastewater mixer also has the function of pushing flow and creating water flow. It is usually suitable for sewage treatment plants, and industrial and municipal sewage. It can create water flow through the rotation of the impeller, improve water quality, increase oxygen content in liquid, and effectively prevent the deposition of suspended matter.
Product Video
Core Advantages Of Products

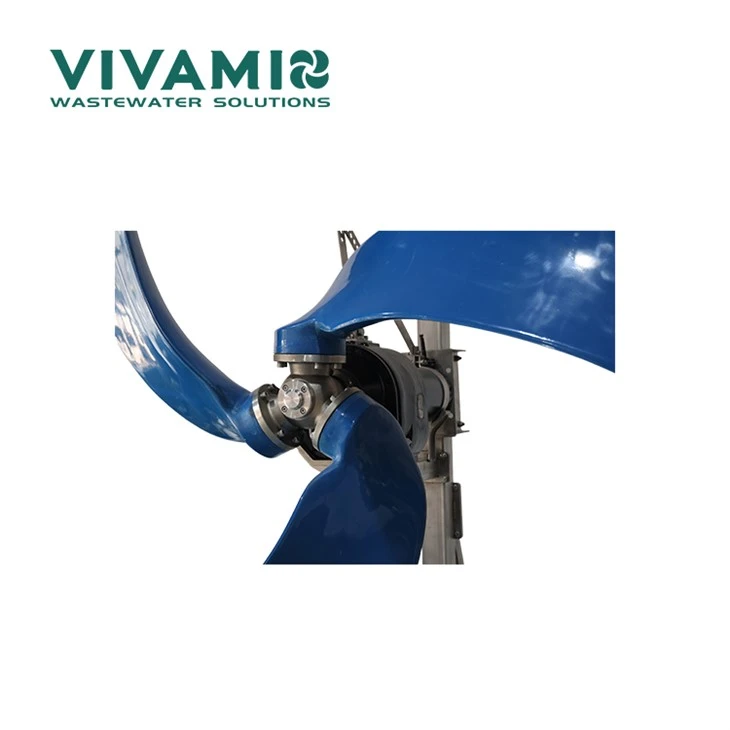

Submersible Thruster Impeller
Motor
NSK Bearings
Submersible Cable
Installation System Example
Product Case Display
Company Profile
VIVA-MIX is a sub-brand of Henan ECO Environmental Equipment CO.,Ltd.
Our factory located in a famous historic city--- Nanjing, Jiangsu Province, specialize in manufacturing submersible mixers , vertical mixers and aeration mechanical & devices for wastewater treatment applications. Guided by our corporate philosophy of "Technology Leads, Quality Survival," we continually study and research cutting-edge technologies and innovative processes from top domestic and international products. By integrating these advancements with working site experiences, we have developed a unique series of products that stand out in the wastewater treatment field.
Our core product range includes energy-saving submersible mixers& recirculation pumps, standard submersible mixers & recirculation pumps , mixers designed specifically for MBBR fillers, hyperbolic mixer& other paddle type vertical mixers, submersible(jet) aerators and various membrane type air diffuser along with installation kits. All our products have been verified by authoritative national testing agencies. Over the past decade, our equipment has been widely deployed in municipal sewage treatment plants and industrial wastewater projects across various sectors, proving its durability and market reliability. We have exported our product to to over 100 countries and regions and enjoy a good reputation among our customers.
To date, our company has been awarded four invention patents and twenty-five utility model patents, with certifications of ISO quality management system, ISO environmental management system, ISO occupational health and safety management system.
Dedicated to continuous self-improvement and product optimization, We looking forward to walking the path of environmental protection with you!
Selection Parameter Table
|
VM 1100 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
1100 |
|
Numbers of blades |
2 |
|
Nominal Rotation Speed,rpm |
65/69/115/135 |
|
Drive Type |
Motor+Gearbox |
|
Motor Power, kW |
1.5/2.2/3.0/4.0 |
|
Motor case material |
cast iron |
|
Impeller material |
PU/FRP |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 1400 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
1400 |
|
Numbers of blades |
2 |
|
Nominal Rotation Speed,rpm |
55/63/65/115 |
|
Drive Type |
Motor+Gearbox |
|
Motor Power, kW |
1.5/2.2/3.0/4.0 |
|
Motor case material |
cast iron |
|
Impeller material |
PU/FRP |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 1600 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
1600 |
|
Numbers of blades |
2 |
|
Nominal Rotation Speed,rpm |
48/56 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
1.5/2.2/3.0/4.0 |
|
Motor case material |
cast iron |
|
Impeller material |
PU/FRP |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 1800 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
1800 |
|
Numbers of blades |
2 |
|
Nominal Rotation Speed,rpm |
42/38/56 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
1.5/2.2/3.0/4.0 |
|
Motor case material |
cast iron |
|
Impeller material |
PU/FRP |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 2200 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
2200 |
|
Numbers of blades |
2 |
|
Nominal Rotation Speed,rpm |
38/32/42/48 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
2.2/3.0/4.0/5.5 |
|
Motor case material |
cast iron |
|
Impeller material |
PU/FRP |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 2500 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
2500 |
|
Numbers of blades |
2 |
|
Nominal Rotation Speed,rpm |
38/32/42/48 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
2.2/3.0/4.0/5.5 |
|
Motor case material |
cast iron |
|
Impeller material |
PU/FRP |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
