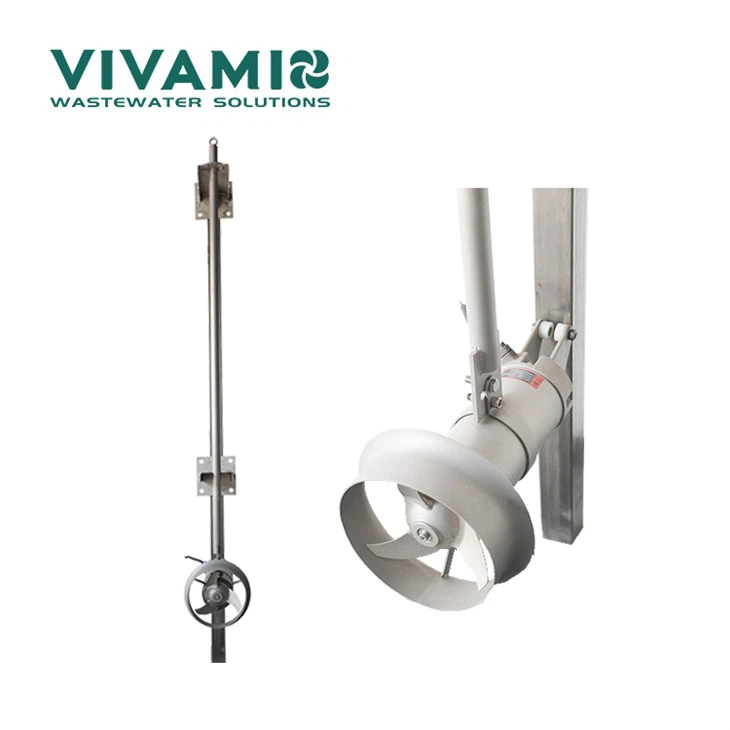

Waste Water Mixer

Waste Water Mixer

Details
Waste water mixer is an efficient device that integrates the motor and mixing unit, widely used in wastewater treatment, chemical, mining, and environmental protection industries. Waste water mixer design allows the equipment to operate directly in the liquid, simplifying the transmission system and improving efficiency and reliability. Whether for water mixing, sedimentation, or other liquid processing, waste water mixer provides strong support.
Category
Submersible Mixer
Share to
Send Inquiry
Description
Technical Parameters
Submersible mixer
Overview

Waste water mixer is an efficient device that integrates the motor and mixing unit, widely used in wastewater treatment, chemical, mining, and environmental protection industries. Waste water mixer design allows the equipment to operate directly in the liquid, simplifying the transmission system and improving efficiency and reliability. Whether for water mixing, sedimentation, or other liquid processing, waste water mixer provides strong support.



Products Description





Application



Mixing, agitating and making ring flows in the process of municipal and industrial sewage treatment: active sludge tank, bioreactor tank, mixing tank, equalizing tank, sewage tank and ect.; The maintenance equipment for the landscape water environment, improving the quality of the water body; Creating water flow, effectively preventing the sedimentation of the suspended substances.



Submersible mixer application range



Installation



Installation drawings



1. Used at H<3m
2. The length of the guide rod can be customized based on the depth of the tank
3. The angle and height can be adjusted both horizontally and vertically.



Company Profile



VIVA-MIX is a sub-brand of Henan ECO Environmental Equipment CO.,Ltd.
Our factory located in a famous historic city--- Nanjing, Jiangsu Province, specialize in manufacturing submersible mixers, vertical mixers and aeration mechanical & devices for wastewater treatment applications. Guided by our corporate philosophy of "Technology Leads, Quality Survival," we continually study and research cutting-edge technologies and innovative processes from top domestic and international products. By integrating these advancements with working site experiences, we have developed a unique series of products that stand out in the wastewater treatment field.
Our core product range includes energy-saving submersible mixers& recirculation pumps, standard submersible mixers & recirculation pumps , mixers designed specifically for MBBR fillers, hyperbolic mixer& other paddle type vertical mixers, submersible(jet) aerators and various membrane type air diffuser along with installation kits. All our products have been verified by authoritative national testing agencies. Over the past decade, our equipment has been widely deployed in municipal sewage treatment plants and industrial wastewater projects across various sectors, proving its durability and market reliability. We have exported our product to to over 100 countries and regions and enjoy a good reputation among our customers.
To date, our company has been awarded four invention patents and twenty-five utility model patents, with certifications of ISO quality management system, ISO environmental management system, ISO occupational health and safety management system.
Dedicated to continuous self-improvement and product optimization, We looking forward to walking the path of environmental protection with you!





Parameter Table



VM 180

Parameter



Impeller Diameter,mm

180

Numbers of blades

3

Nominal Rotation Speed,rpm

740

Drive Type

Direct Drive

Motor Power, kW

1.5/2.2/2.5/3/4

Motor case material

S.S 304/S.S.316

Impeller material

S.S 304/S.S.316

Shaft Material

S.S 420

Mechnical Seal

Tungsten Carbide

Bearings

NSK



VM 220

Parameter



Impeller Diameter,mm

220

Numbers of blades

3

Nominal Rotation Speed,rpm

960

Drive Type

Direct Drive

Motor Power, kW

0.37

Motor case material

S.S 304/S.S.316

Impeller material

S.S 304/S.S.316

Shaft Material

S.S 420

Mechnical Seal

Tungsten Carbide

Bearings

NSK



VM 260

Parameter



Impeller Diameter,mm

260

Numbers of blades

3

Nominal Rotation Speed,rpm

740/960

Drive Type

Direct Drive

Motor Power, kW

0.85/1.5

Motor case material

S.S 304/S.S.316

Impeller material

S.S 304/S.S.316

Shaft Material

S.S 420

Mechnical Seal

Tungsten Carbide

Bearings

NSK



VM 320

Parameter



Impeller Diameter,mm

320

Numbers of blades

3

Nominal Rotation Speed,rpm

740

Drive Type

Direct Drive

Motor Power, kW

2.2

Motor case material

S.S 304/S.S.316

Impeller material

S.S 304/S.S.316

Shaft Material

S.S 420

Mechnical Seal

Tungsten Carbide

Bearings

NSK



VM 400

Parameter



Impeller Diameter,mm

400

Numbers of blades

3

Nominal Rotation Speed,rpm

740/960

Drive Type

Direct Drive

Motor Power, kW

1.2/2.5/3/4

Motor case material

S.S 304/S.S.316

Impeller material

S.S 304/S.S.316

Shaft Material

S.S 420

Mechnical Seal

Tungsten Carbide

Bearings

NSK



VM 620

Parameter



Impeller Diameter,mm

620

Numbers of blades

3

Nominal Rotation Speed,rpm

480

Drive Type

Direct Drive

Motor Power, kW

4/5/7.5/10/15/18.5/22

Motor case material

S.S 304/S.S.316

Impeller material

S.S 304/S.S.316

Shaft Material

S.S 420

Mechnical Seal

Tungsten Carbide

Bearings

NSK
