Overview

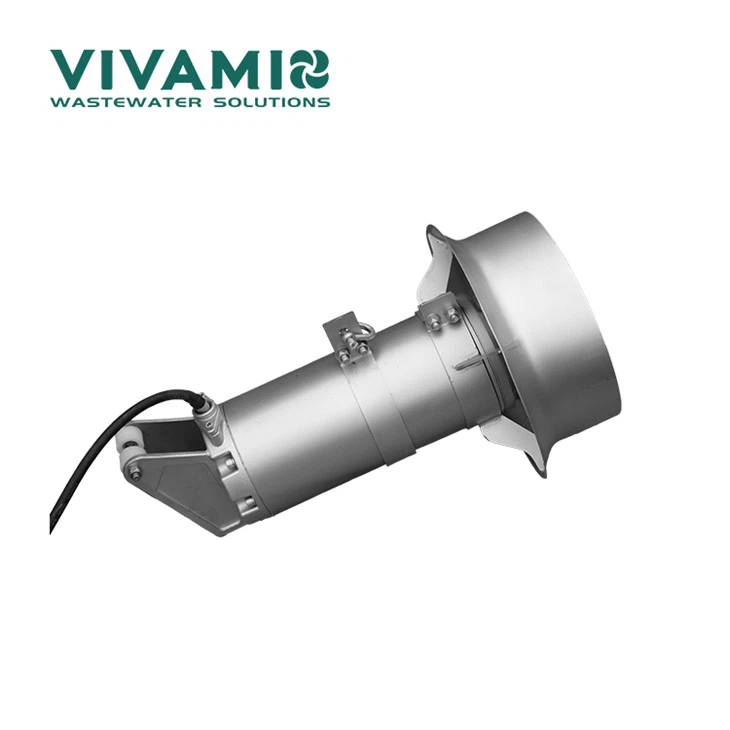

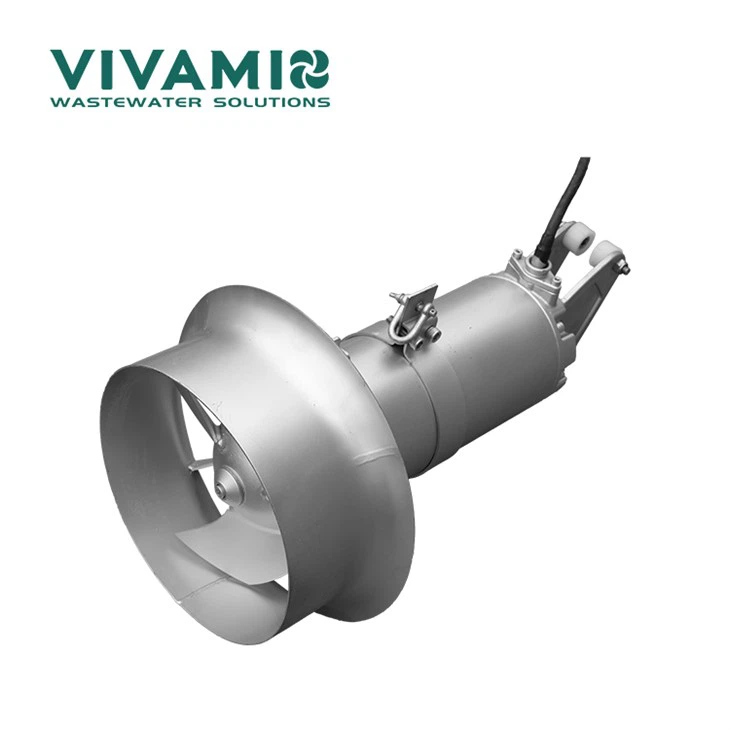

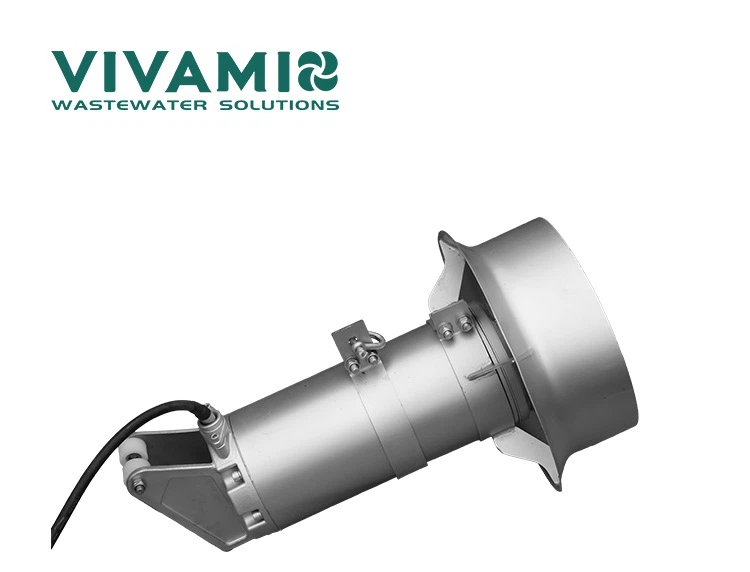

Submersible mixer for anoxic tank is widely used in the fields like sewage treatment, industrial wastewater treatment, aquaculture, etc. Strong agitation prevents sludge and suspended particles in the water from settling, and the liquid, solid and gas three-phase media are evenly mixed to achieve better treatment effects.
Product Video
Working Principle
Submersible mixer for anoxic tank usually consists of key components such as motors, blades, and sealing devices. The motor provides power to drive the blades to rotate, and the impellers drive the water flow to rotate, converting the kinetic energy generated by the water into mechanical energy, causing the impeller to drive the surrounding water to produce strong circulation and tangential flow, so as to achieve mixing, stirring and other purposes.
Characteristics
1. Multi-pole motor, direct connection structure, low energy consumption and high efficiency;
2. Compact structure, small footprint, light weight, easy to install, operate and maintain;
3. Impeller design is reasonable. It is formed by precision casting or stamping, with a beautiful and smooth appearance. The swept-back blades have a self-cleaning function and are anti-winding.
4. The motor winding insulation level is Class F, the protection level is IP68. NSK high-quality bearings are selected with leakage detection and overheating protection functions, which are safer and more reliable.
5. Two mechanical seals made of corrosion-resistant materials are used to extend the service life.
Working Conditions
The submersible mixer for anoxic tank can operate normally and continuously in a working environment that meets the following conditions:
1. The liquid temperature shall not exceed 40℃;
2. The pH value of the liquid is between 5~9;
3. The liquid density shall not exceed 1150 kg/m³;
4. The diving depth is generally not more than 20m during long-term diving operations.
Company Profile
VIVA-MIX is a sub-brand of Henan ECO Environmental Equipment CO.,Ltd.
Our factory located in a famous historic city--- Nanjing, Jiangsu Province, specialize in manufacturing submersible mixers , vertical mixers and aeration mechanical & devices for wastewater treatment applications. Guided by our corporate philosophy of "Technology Leads, Quality Survival," we continually study and research cutting-edge technologies and innovative processes from top domestic and international products. By integrating these advancements with working site experiences, we have developed a unique series of products that stand out in the wastewater treatment field.
Our core product range includes energy-saving submersible mixers& recirculation pumps, standard submersible mixers & recirculation pumps , mixers designed specifically for MBBR fillers, hyperbolic mixer& other paddle type vertical mixers, submersible(jet) aerators and various membrane type air diffuser along with installation kits. All our products have been verified by authoritative national testing agencies. Over the past decade, our equipment has been widely deployed in municipal sewage treatment plants and industrial wastewater projects across various sectors, proving its durability and market reliability. We have exported our product to to over 100 countries and regions and enjoy a good reputation among our customers.
To date, our company has been awarded four invention patents and twenty-five utility model patents, with certifications of ISO quality management system, ISO environmental management system, ISO occupational health and safety management system.
Dedicated to continuous self-improvement and product optimization, We looking forward to walking the path of environmental protection with you!
FAQ
Product Parameters
|
VM 180 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
180 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
1.5/2.2/2.5/3/4 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 220 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
220 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
960 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
0.37 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 260 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
260 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740/960 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
0.85/1.5 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 320 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
320 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
2.2 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 400 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
400 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740/960 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
1.2/2.5/3/4 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 620 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
620 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
480 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
4/5/7.5/10/15/18.5/22 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
