Working Principle
The core working principle of Submersible Mixers for sewage is the waterproof motor, which can operate stably underwater. The motor drives the mixer to rotate, achieving continuous stirring. During the mixing process, the submerged mixer can flexibly control the stirring speed and intensity through its rotational speed and the use of specially designed mixing blades to meet the mixing requirements of different media. When the motor operates, the impeller rotates, generating centrifugal force. This centrifugal force causes the liquid to flow outward, forming a stable circulation. This not only effectively mixes the liquid but also suspends and transports solid particles, achieving efficient stirring results.
Product Video

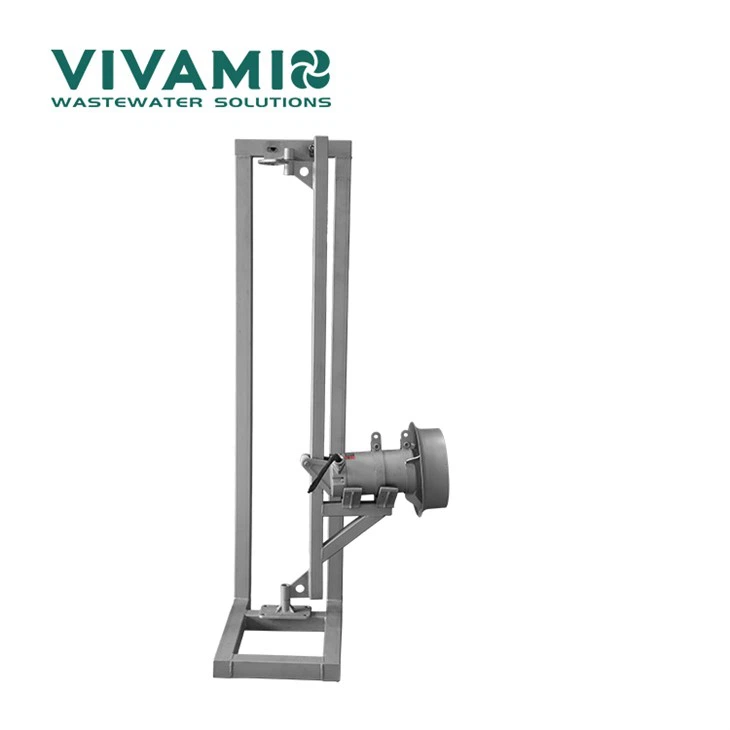

Installation Reference
Regarding the installation of Submersible Mixers for sewage, we can recommend the most suitable installation system based on the actual site conditions. We will also provide detailed installation drawings to ensure that the entire process proceeds smoothly.
Company Profile
VIVA-MIX is a sub-brand of Henan ECO Environmental Equipment CO.,Ltd.
Our factory located in a famous historic city--- Nanjing, Jiangsu Province, specialize in manufacturing submersible mixers, vertical mixers and aeration mechanical & devices for wastewater treatment applications. Guided by our corporate philosophy of "Technology Leads, Quality Survival," we continually study and research cutting-edge technologies and innovative processes from top domestic and international products. By integrating these advancements with working site experiences, we have developed a unique series of products that stand out in the wastewater treatment field.
Our core product range includes energy-saving submersible mixers& recirculation pumps, standard submersible mixers & recirculation pumps , mixers designed specifically for MBBR fillers, hyperbolic mixer& other paddle type vertical mixers, submersible(jet) aerators and various membrane type air diffuser along with installation kits. All our products have been verified by authoritative national testing agencies. Over the past decade, our equipment has been widely deployed in municipal sewage treatment plants and industrial wastewater projects across various sectors, proving its durability and market reliability. We have exported our product to to over 100 countries and regions and enjoy a good reputation among our customers.
To date, our company has been awarded four invention patents and twenty-five utility model patents, with certifications of ISO quality management system, ISO environmental management system, ISO occupational health and safety management system.
Dedicated to continuous self-improvement and product optimization, We looking forward to walking the path of environmental protection with you!
Parameters Table
The model naming of Submersible Mixers for sewage typically includes key parameters such as power, impeller diameter, and rotational speed. Additionally, we support the provision of customized models based on customer requirements and specific operating conditions to meet diverse application needs.
|
VM 180 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
180 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
1.5/2.2/2.5/3/4 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 220 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
220 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
960 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
0.37 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 260 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
260 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740/960 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
0.85/1.5 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 320 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
320 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
2.2 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 400 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
400 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
740/960 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
1.2/2.5/3/4 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
|
VM 620 |
|
|
Parameter |
|
|
Impeller Diameter,mm |
620 |
|
Numbers of blades |
3 |
|
Nominal Rotation Speed,rpm |
480 |
|
Drive Type |
Direct Drive |
|
Motor Power, kW |
4/5/7.5/10/15/18.5/22 |
|
Motor case material |
S.S 304/S.S.316 |
|
Impeller material |
S.S 304/S.S.316 |
|
Shaft Material |
S.S 420 |
|
Mechnical Seal |
Tungsten Carbide |
|
Bearings |
NSK |
