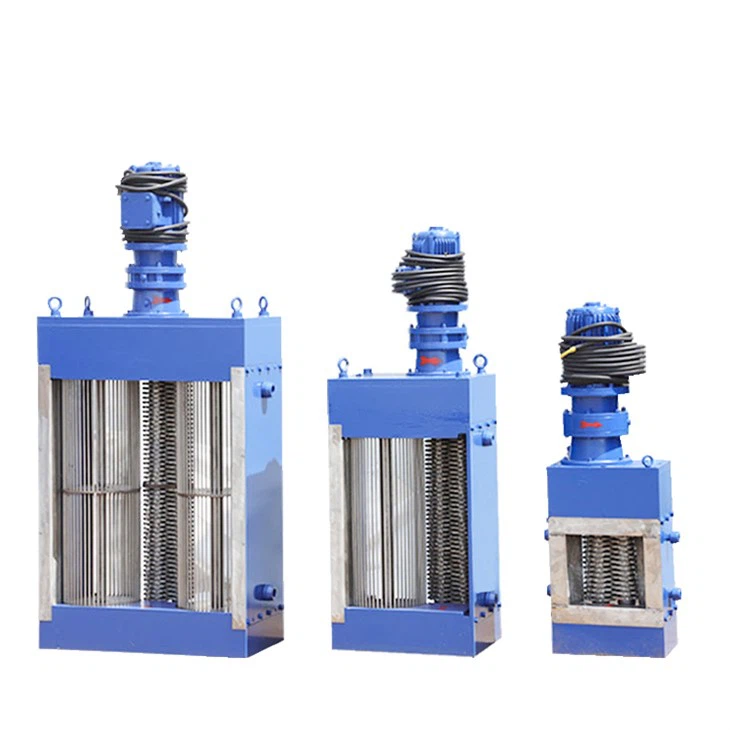

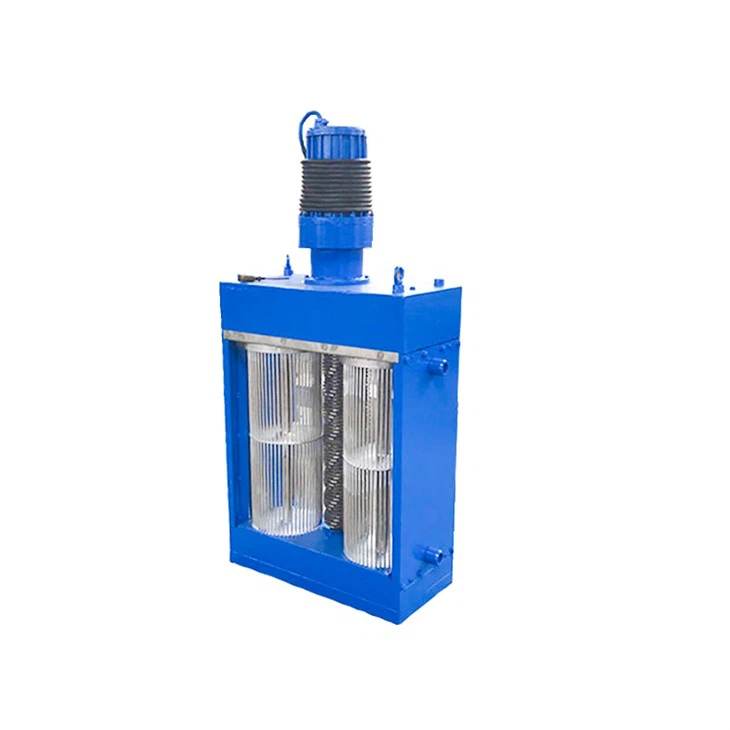

Products Description
Grinder Screen can crush various large solid particles in sewage, reduce blockage caused by sewage discharge, reduce the damage rate of sewage treatment process equipment, and achieve the purpose of protecting equipment.

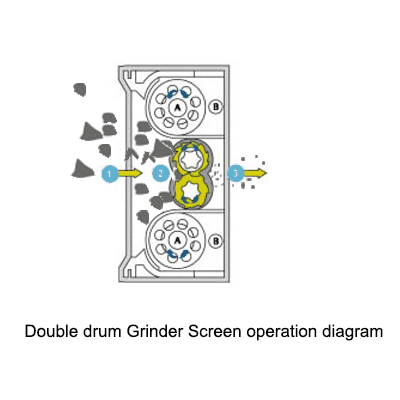

How it works
After the Grinder Screen motor is started, the blade and the vertical drum rotate at different speeds at the same time. The solid floating matter in the sewage is intercepted by the rotating grid after entering the drum area with the sewage and sent to the cutting area. The two sets of blades rotating at different speeds quickly cut axially and radially, crushing them into 8-10MM fine particles. The crushed small particles are pumped away by the water pump, effectively preventing the water pump from winding and clogging. The auxiliary grid performs auxiliary sewage interception when the water level is too high.
1. Sewage and solid waste in the pipe or channel enter the Grinder Screen
2. The double-axis crushing blades of the grid rotate in opposite directions to crush the solid waste
3. The solid waste is crushed into 6mm-12mm particles, flows out of the crushing grid, and enters the sewage plant with the sewage

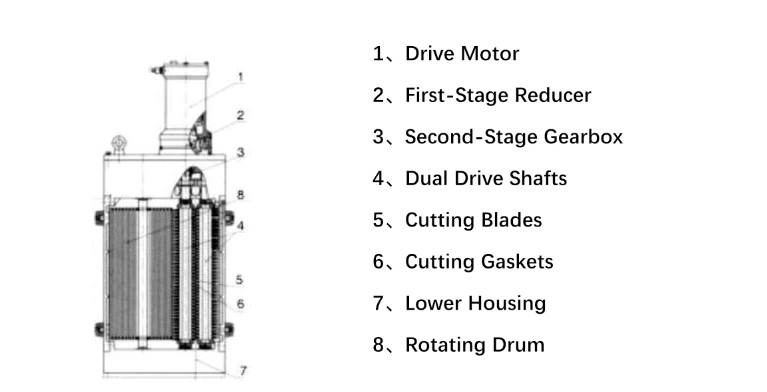

Structural form
Grinder Screen is mainly composed of a wet and dry dual-purpose motor, a reducer, a body cutting blade, a gasket, a driving shaft, a driven shaft, an intermediate supporting shaft, a sealing device, a machine base, a vertical rotating water-passing drum screen, an automatic coupling device, an overflow screen, etc.
Product Advantages
Stable Operation
It adopts dry and wet dual-purpose explosion-proof motor, provides powerful grinding power, low energy consumption, saves time and electricity, and can achieve 7*24 hours continuous operation with stable working conditions.
Excellent Crushing Performance
Specially designed blade structure efficiently crushes large debris into fine particles.
Easy Installation
Compact and integrally molded design simplifies transportation and reduces construction costs. The product is easy to install and maintain, with a short installation cycle and high capacity.
Customized production
Many years of industry production experience, various specifications, you can contact customer service for customized products according to your needs.

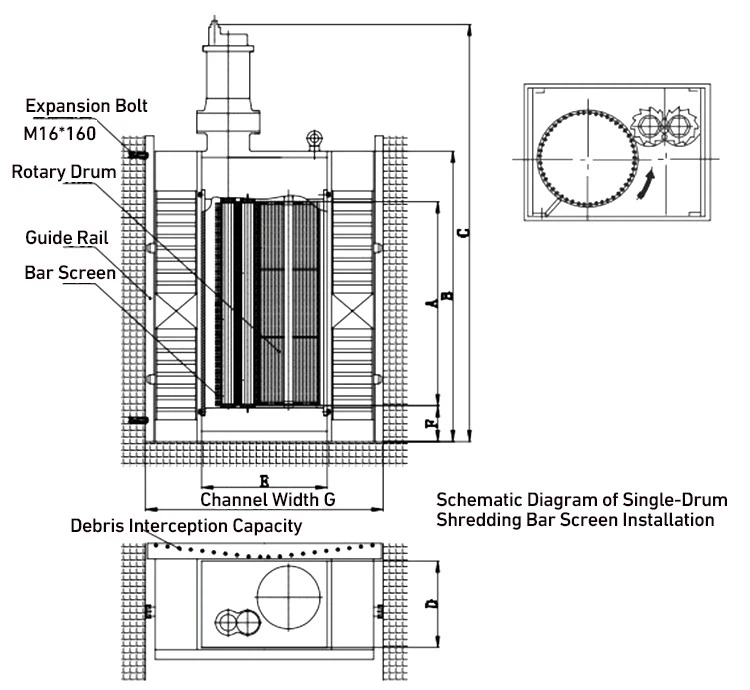

Installation diagram
Installation
Wall mounting
DIN-rail installation
Parameter

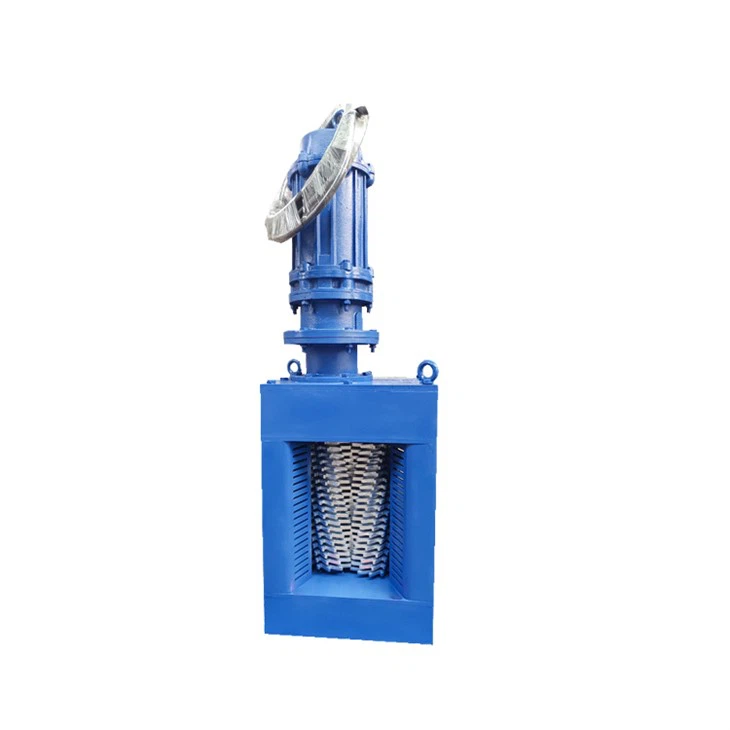

| Drumless Grinder Screen | |||||
| Name | Front Width | Side Width | Blade Disk Height | Flow Rate (m³/h) | Power (kW) |
| LK-WFS100 | 320 | 180 | 100 | 60 | 1.5 |
| LK-WFS200 | 360 | 250 | 200 | 90 | 2.2 |
| LK-WFS300 | 300 | 110 | |||
| LK-WFS400 | 400 | 140 | 3 | ||
| LK-WFS500 | 500 | 170 | |||
| LK-WFS600 | 600 | 190 | |||
| LK-WFS700 | 700 | 215 | |||
| LK-WFS800 | 800 | 240 | |||
| Single Drum Grinder Screen | |||||
| Name | Front Width | Side Width | Blade Disk Height | Flow Rate (m³/h) | Power (kW) |
| LK-DFS400 | 360 | 250 | 400 | 450 | 3 |
| LK-DFS500 | 500 | 500 | |||
| LK-DFS600 | 600 | 600 | |||
| LK-DFS700 | 700 | 700 | |||
| LK-DFS800 | 800 | 850 | |||
| Double Drum Grinder Screen | |||||
| Name | Front Width | Side Width | Blade Disk Height | Flow Rate (m³/h) | Power (kW) |
| LK-FSI500 | 800 | 450 | 500 | 1150 | 4 |
| LK-FSI600 | 600 | 1450 | |||
| LK-FSI700 | 700 | 1650 | |||
| LK-FSI800 | 800 | 1890 | |||
| LK-FSI1000 | 1000 | 2400 | |||
| LK-FSI1200 | 1200 | 2850 | |||
| LK-FSG800 | 1200 | 500 | 800 | 8000 | 4 |
| LK-FSG900 | 900 | 9000 | |||
| LK-FSG1000 | 1000 | 10000 | |||
| LK-FSG1100 | 1100 | 11000 | |||
| LK-FSG1200 | 1200 | 12000 | |||
| LK-FSG1300 | 1300 | 13000 | |||
| LK-FSG1400 | 1400 | 14000 | |||
| LK-FSG1500 | 1500 | 15000 | |||
| LK-FSG1600 | 1600 | 16000 | |||
| LK-FSG1700 | 1700 | 17000 | |||
| LK-FSG1800 | 1800 | 18000 | |||
| LK-FSC800 | 1500 | 600 | 800 | 9000~11000 | 5.5 |
| LK-FSC900 | 900 | 11000~12000 | |||
| LK-FSC1000 | 1000 | 12000~13000 | |||
| LK-FSC1100 | 1100 | 13000~14000 | |||
| LK-FSC1200 | 1200 | 14000~15000 | 7.5 | ||
| LK-FSC1300 | 1300 | 15000~16000 | |||
| LK-FSC1400 | 1400 | 16000~17000 | |||
| LK-FSC1500 | 1500 | 17000~18000 | |||
| LK-FSC1600 | 1600 | 18000~19000 | 11 | ||
| LK-FSC1700 | 1700 | 19000~20000 | |||
| LK-FSC1800 | 1800 | 20000~21000 | |||
Order Customization Steps
Customization Process:
- Initial Consultation – Contact customer service in advance with your customization needs.
- Provide Details – Share specific parameters, quantity, and application scenario.
- Quotation – Receive pricing based on your requirements.
- Solution Confirmation – Review and confirm the proposed production plan.
- Order & Payment – Place your order and complete the payment.
- Production – The factory begins manufacturing your custom product.
- Packaging & Shipping – Finished goods are packed and dispatched.
- Delivery Confirmation – Confirm and receive the goods.
FAQ
Q1: What is the main application of the grinder screen?
A1: It's mainly used for crushing and screening solid waste in municipal and industrial wastewater.
Q2: Can you customize the grinder screen?
A2: Yes, we can customize based on flow rate, water quality, and installation size.
Q3: What's your delivery time and warranty?
A3: Usually 10–25 days. We provide 1-year warranty and lifelong technical support.
